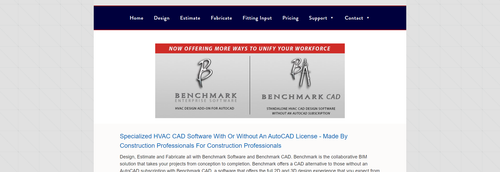

Benchmark CAD cover

About Benchmark CAD

HVAC CAD with or without an AutoCAD license

Benchmark CAD is HVAC design and estimating software, sold as part of the Benchmark Enterprise Software suite. The company describes it as specialized HVAC CAD software made by construction professionals for construction professionals. Its main point is that it gives heating, ventilation and air conditioning firms a full two-dimensional and three-dimensional design program without requiring an AutoCAD subscription. It also works with Benchmark's existing AutoCAD plug-ins, so a firm that already uses AutoCAD can keep its workflow.

Design and drawing tools

Drawing runs in two and three dimensions, with a parts library behind it. Designers work from a library that the company says includes the right parts with the right connections. Routed systems can be traced from PDF drawings, which the company says speeds up the design stage. The design work can begin from built-in SMACNA construction standards, the sheet metal and air conditioning contractors' standards that the software uses as its starting point.

Estimating from the drawing

Estimators can line-item costs directly from the CAD drawing and calculate labor tables. Costs can be customized, and scheduling can be generated from the same data. The company says this gives clear quotes, because the estimate and the drawing are built from the same record.

Fabrication without double entry

When drawings are finished, the same files can be nested for the fabrication shop, so that fittings do not have to be entered twice. The company says this saves the manual hours that fabricators would otherwise spend on double entry. Tracking labels can be printed for each piece of ductwork, and project managers use them to get real-time updates from installers in the field.

A shared company database

Anyone on the team, wherever they sit, can work from one shared database with company-wide access and online synchronization. The company says this lets a whole team collaborate on a project from different locations.

One suite across the trade

Benchmark CAD is one part of a wider set of products. The company describes the suite as a collaborative building information modeling solution that takes a project from conception to completion, covering design, estimating and fabrication. Benchmark Draft's AutoCAD integration extends the same feature set to users working in AutoCAD, from office estimating through to commissioning in the field.

Built by people from the industry

The company says the software was developed by HVAC professionals for the HVAC industry, and that its team is focused on making the trade better. It describes its tools as serving designers and engineers, estimators, fabricators and project managers in the same workflow.

TrustList summary

Benchmark CAD is part of Benchmark Enterprise Software, a collaborative BIM suite for HVAC firms. It offers 2D and 3D design for those without an AutoCAD subscription and also works with Benchmark's AutoCAD plug-ins, so a single drawing can feed design, estimating and fabrication.

Features

  • HVAC design: 2D and 3D drawing with a parts library and PDF tracing.
  • Estimating: line-item costs taken straight from the drawing, with labour tables and scheduling.
  • Fabrication: drawings can be nested for the shop without re-entering fittings.
  • SMACNA standards: designs and estimates start from built-in construction standards.
  • Shared database: staff in and out of the office use synchronised company data.
  • Tracking labels: printed for fabricated ductwork so project managers can get field updates.

Customers and markets

HVAC designers, engineers, estimators and fabricators, plus project managers.

Summary written by TrustList from the business's own published information, Nov 2026.
