Introduction

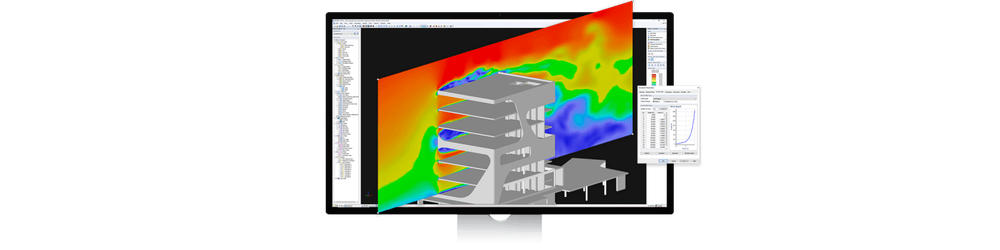

With RWIND 2, you have a program at your side that uses a digital wind tunnel for the numerical simulation of wind flows. The program simulates these flows around any building geometry and determines the wind loads on the surfaces. RWIND is available for you in a Basic and a Pro version.

This program was developed in cooperation with PC-Progress and CFD Support. Therefore, you can use it as a stand-alone application or together with RFEM and RSTAB for your complete structural analysis and design.

description

RWIND 2 is used to determine wind loads for buildings. In addition to a 3D model, all you need is a wind load description. The program automatically determines all other parameters for the flow simulation, so the analysis is performed at the push of a button.

  • RWIND 2 is a stand-alone program and can be used as a stand-alone application or as a complement to structural analysis & design software RFEM and RSTAB.
  • Due to the basic assumption regarding the determination of wind loads for buildings with the transfer of forces to the structural model, there is a native connection between RFEM and RWIND 2.
  • This connection allows you to export any RFEM or RSTAB model with a wind load definition to RWIND 2 by using a special interface, and to obtain the wind loads on the element surfaces after the calculation.
  • You can also use RWIND 2 without RFEM or RSTAB.

Skills and Features
3d Cad Software3d Modeling Software3d Rendering SoftwareBim Software
